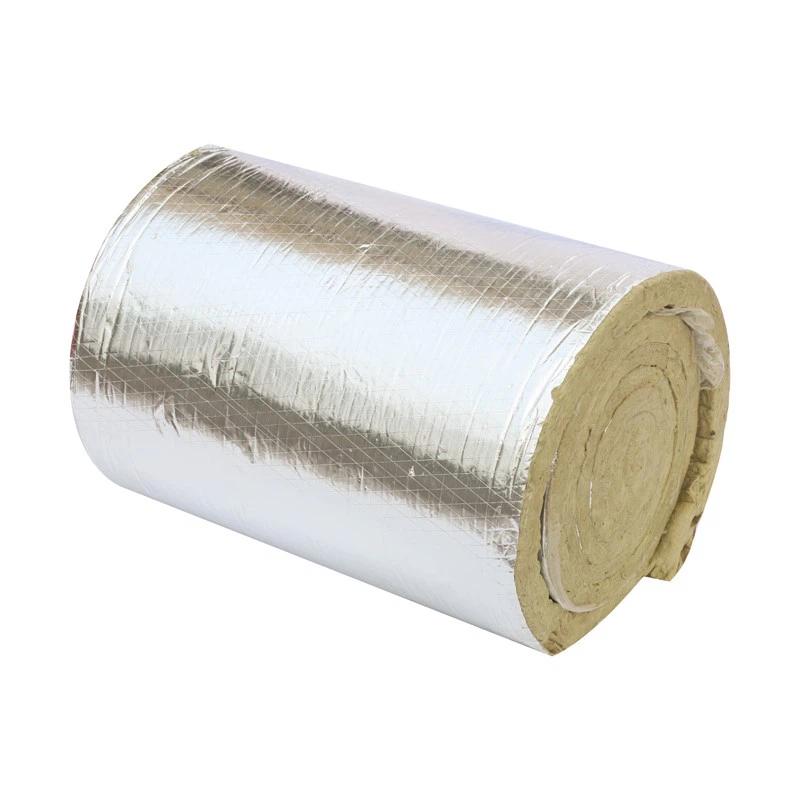

ZRD ALUM FOIL ROCK WOOL BLENKET

Irregular equipment and large pipes, long product length, can effectively reduce joints and reduce thermal bridges. Hydrophobic and low-chlorine products can be produced according to requirements, and aluminum foil glass fiber cloth (ALGC) and other facing materials can also be pasted on the surface.

Standard Specification

PRODUCT	LRL80		LRL100		LRL120
Density，kg/m3	80		100		120
Width，mm	600,900		600,900		600,900
Thickness，mm	25~50	60~ 100	25~50	60~ 100	25~50	60~ 100
Length，mm	5000	3000	5000	3000	5000	3000

For products with other specifications, please consult the company sales.

Main Performance and Technical Indicators

Performance		LRL80	LRL100	LRL120	Uint	Standard
Thermal conductivity	5 0 C	≤ 0.038	≤ 0.038	≤ 0.038	W/(m•K)	GB/T 10295 ASTM C518 ASTM C177
	1 0 0 C	≤ 0.047	≤ 0.045	≤ 0.045
	1 5 0 C	≤ 0.058	≤ 0.056	≤ 0.055
	2 0 0 C	≤ 0.071	≤ 0.067	≤ 0.064
	2 5 0 C	≤ 0.085	≤ 0.080	≤ 0.074
	3 0 0 C	≤ 0.099	≤ 0.095	≤ 0.090
Maximum operating temperature		650	750	750	C	ASTM C411
Heat load shrinkage temperature		600	650	650	C	GB/T 11835
Linear shrinkage		≤2	≤2	≤2	%	ASTM C356
Volume moisture absorption*		≤ 0.02	0.02	0.02	vol%	ASTM C1104 M
Hydrophobicity*		99	99	99	%	GB/T 10299
Chloride content**		≤ 10	≤ 10	≤ 10	mg/ kg	ASTM C871
Combustion performance		Nonflammability A1 Smoke degree <25 Flame Spread <25			---	GB 8624 ASTM E84
