ZRD GLASS WOOL PIPE INSULATION
2023-08-18

  GLASS WOOL PIPE INSULATION

ZRD Eco Friendly Glass Wool Roof Panel as False Ceiling for Hear Resistant is plate product with a fixed strength after hot-setting the centrifugal glasswool. It has excellent thermal insulation performance at both high and low temperature environment. It is mainly used for the separation wall in the high-grade building,ceiling,air conduit or inner wall of bellows for thermal insulation, or machine shops for noise absorption, or melt ceiling for control of moisture.High density panels with laminated facing can be used for air-conditioning duct system.

GLASS WOOL PIPE sectionis used for the thermal insulation of industrial pipes, central heating and solar energy installations, for the insulation against freezing and condensation of the pipes and for vibration and sound insulation of the pressure water pipes as well.

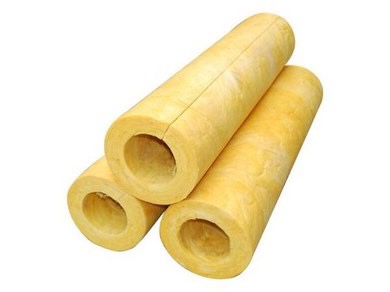

Glass wool pipe is manufactured from a unique rotary process with high density glass wool, which is used for hot and cold pipes in one meter length.

It is designed to fit pipes of external diameter of 15mm to 400mm with insulation thickness of 20mm to 100mm while other sizes are available upon request. Density ranges from 48kg/m3 to 90kg/m3. Pipes are split longitudinally to provide ease of installation. For application where vapor barrier are needed, pipes faced with aluminium foil are available

roduct parameter of the fiberglass insulation tube

Recommend Thickness List(mm)

Pipeline System Type

The Thickness of glasswood pipe shell applied in different pipeline (mm)

Liquid Temperature Range ℃

Diameter of Branches Under 50mm

Under 25mm

32-50

64-100

125-150

Above 200mm

Air System Steaming and Water System High Temperature/ High Pressure System

152-238

40

64

64

75

89

89

Medium Temperature/ Medium Pressure System

122-151

40

50

64

64

75

75

low Temperature/ low Pressure System

94-121

25

40

40

50

50

50

low Temperature System

49-93

13

25

25

40

40

40

Steaming Condensator of Watering System

Any Temperature

25

25

40

50

50

50



Equivalent Thickness of Surface Cooling Prevention

Environment Temperature

Relative Humidity

System Working Temperature

2℃

7℃

13℃

38℃

50%-60%

25

25

25

70%

40

30

30

80%

75

60

50

85%

100

90

75

32℃

50%-60%

25

25

25

70%

25

25

25

80%

50

50

40

85%

80

75

60

27℃

50%-70%

25

25

25

80%

50

40

30

85%

75

65

50

21℃

50%-70%

25

25

25

80%

50

40

30

85%

75

50

40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.

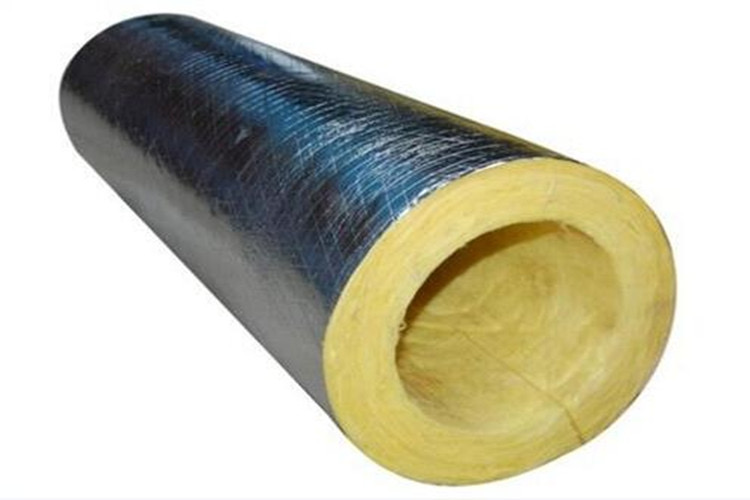

Product size of the glass wool pipe insulation with reflective outer shield

Density(kg/m3)

Thickness(mm)

Length (mm)

Diameter (mm)

48-80

25-90

1000,1200

18-529



Product feature and application of the fiberglass insulation tube

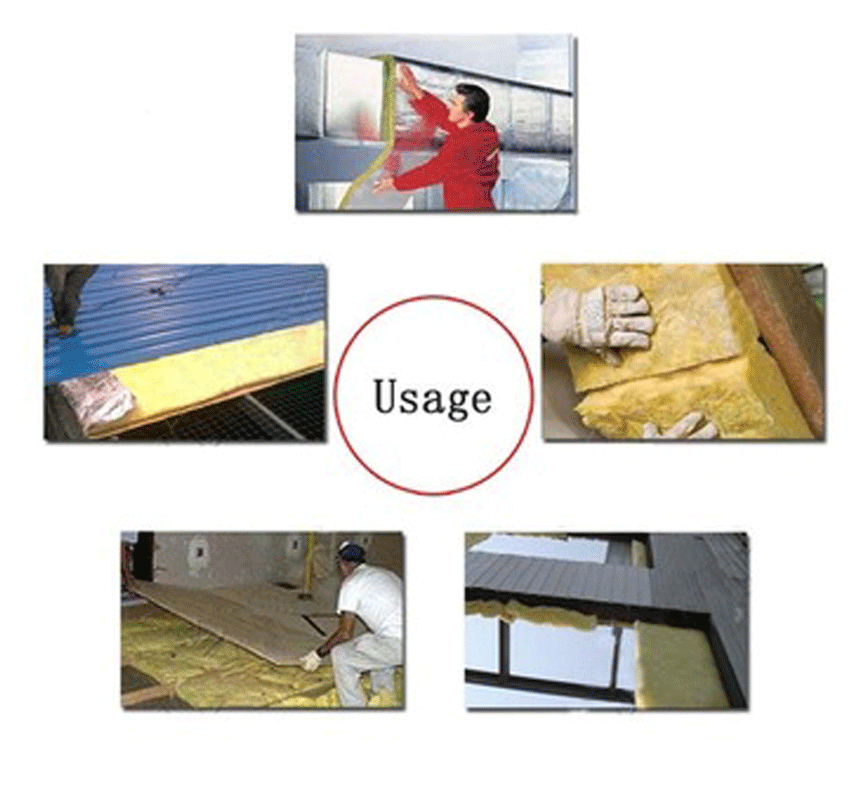

Glass wool pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.



Production details of the fiberglass insulation tube
