ZRD Ceramic Fiber Blanket
2023-12-22

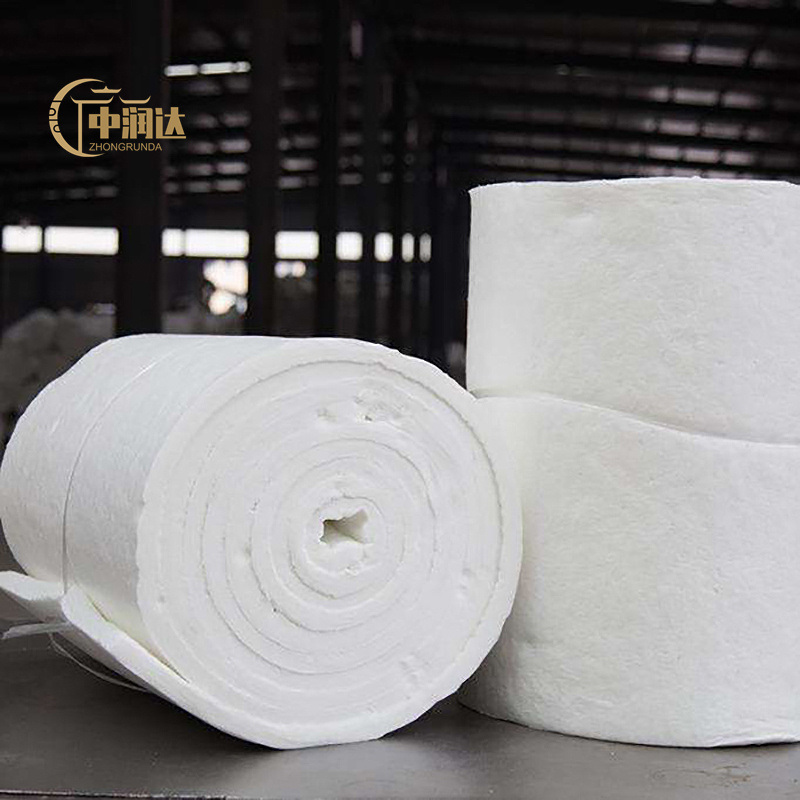

 ZRD Ceramic Fiber Blanket

 Nanjing Zhongrunda New Material Technology Co., Ltd., as an enterprise focusing on the research and development and production of new materials, has won wide market recognition with its excellent product quality and innovative technology. Among them, the company's aluminum silicate fiber blanket products, with its excellent performance and a wide range of application fields, has become the star product in the industry.

Aluminum silicate fiber blanket is a new type of high efficiency heat insulation material, with extremely high fire resistance, corrosion resistance and good thermal insulation performance. It is woven from aluminum silicate fiber, and has the characteristics of light weight, high strength and high temperature resistance. In a high temperature environment, the aluminum silicate fiber blanket can effectively block the heat transfer, keep the temperature stable, reduce the energy consumption, and improve the operation efficiency of the equipment.

 Aluminum silof aluminum silsilblanket blanket very applications, including but not limited to the following aspects:



 ZRD CERAMIC FIBER BLANKET

TYPE1

TYPE2

TYPE3

TYPE4

TYPE5

Specification Temp. ()

1260

1260

1360

1430

1600

Working Temp. ()

1050

1100

1200

1350

1500

Bulk Density (kg/m3)

64-160

64-160

64-160

64-160

96/128

@24H

Linear Shrinkage after Heating

-3

(1000)

-3

(1100)

-3

(1250)

-3

(1350)

-1

(1400)

Thermal Conductivity

0.09(400)

0.17(800)

0.32(1000)

0.09(400)

0.17(800)

0.31(1000)

0.09(400)

0.13(600)

0.22(1000)

0.09(400)

0.76(600)

0.22(1000)

0.16(600)

0.28(1000)

0.45(1400)

Tensile strength (MPa)

0.05

0.05

0.06

0.06

0.08







Chemical Composition (%)



Al2O3

43

44

51

35

71



Al2O3+SiO2

96

98

99

-

-



ZrO2

-

-

-

13-15

-



Fe2O3

1.0

0.5

0.2

0.2

0.2



Na2O+K2O

0.5

0.3

0.2

0.2

0.2



Size(mm)





LENGTH*WIDTH*THICKNESS

7200*610/1220*253600*610/1220*504800*610/1220*38

7200*610/1220*614400*610/1220*12.528800*610/1220*6.38



THICKNESS

10-25

1. Industrial furnace: Aluminum silicate fiber blanket can be used in the insulation layer of industrial furnace to improve the insulation performance of the furnace, reduce energy consumption and reduce the operating cost.

2. Building insulation: Aluminum silicate fiber blanket can be used for the thermal insulation of buildings, improve the energy saving effect of the building, and improve the indoor environment.

3. Aerospace: Aluminum silicate fiber blanket is also widely used in the aerospace field, used for the insulation of aircraft and rockets to protect equipment from high temperatures and radiation.

4. Automobile manufacturing: Aluminum silicate fiber blanket can be used in the insulation layer of automobile engine, improve the heat dissipation performance of the engine and prolong the service life.

Nanjing Zhongrunda New Material Technology Co., Ltd. aluminum silicate fiber blanket products strictly control the quality in the production process, using advanced production technology and technology, to ensure the performance of stable products, reliable quality. At the same time, the company also provides perfect after-sales service and technical support, to provide customers with a full range of services.

 In short, the aluminum silicate fiber blanket of Nanjing Zhongrunda New Material Technology Co., Ltd.'s products have injected new vitality into the development of new materials with its excellent performance and a wide range of applications. We believe that in the future development, Nanjing Zhongrunda New Material Technology Co., Ltd. will continue to adhere to the core values of innovation, quality and service, and provide customers with better products and services. Of course, the following is more introduction of aluminum silicate fiber blanket of Nanjing Zhongrunda New Material Technology Co., Ltd.:

 Nanjing Zhongrunda New Material Technology Co., Ltd.'s aluminum silicate fiber blanket not only performs well in performance, but also pays attention to environmental protection and sustainability in the production and use process. The main raw material of aluminum silicate fiber blanket is aluminum silicate, which is a material with high thermal stability and good environmental protection performance. In the production process, the company adopts the advanced production process to ensure the quality and performance of the aluminum silicate fiber blanket.

 In addition, Nanjing Zhongrunda New Material Technology Co., Ltd. also pays attention to product research and development and innovation. The company has a professional research and development team, committed to the research and development of new efficient heat insulation materials, to meet the changing market demand. Through continuous technological innovation and product upgrading, Nanjing Zhongrunda New Material Technology Co., Ltd. aluminum silicate fiber blanket maintains the leading position in the market.

In the future development, Nanjing Zhongrunda New Material Technology Co., Ltd. will continue to increase the investment in research and development, and promote the technological progress in the field of new materials. At the same time, the company will also actively expand the international market, the high-quality products and services to the world, to provide global users with efficient, environmentally friendly, sustainable heat insulation material solutions.

 In short, the aluminum silicate fiber blanket of Nanjing Zhongrunda New Material Technology Co., Ltd. has been widely recognized by the market with its excellent performance, environmental protection and sustainability and the spirit of continuous innovation. We believe that in the future development, Nanjing Zhongrunda New Material Technology Co., Ltd. will continue to make greater contributions to the development of the new material field. Of course, the following is more introduction of aluminum silicate fiber blanket of Nanjing Zhongrunda New Material Technology Co., Ltd.:

 Nanjing Zhongrunda New Material Technology Co., Ltd.'s aluminum silicate fiber blanket not only performs well in performance, but also pays attention to environmental protection and sustainability in the production and use process. The main raw material of aluminum silicate fiber blanket is aluminum silicate, which is a material with high thermal stability and good environmental protection performance. In the production process, the company adopts the advanced production process to ensure the quality and performance of the aluminum silicate fiber blanket.

 In addition, Nanjing Zhongrunda New Material Technology Co., Ltd. also pays attention to product research and development and innovation. The company has a professional research and development team, committed to the research and development of new efficient heat insulation materials, to meet the changing market demand. Through continuous technological innovation and product upgrading, Nanjing Zhongrunda New Material Technology Co., Ltd. aluminum silicate fiber blanket maintains the leading position in the market.

 In the future development, Nanjing Zhongrunda New Material Technology Co., Ltd. will continue to increase the investment in research and development, and promote the technological progress in the field of new materials. At the same time, the company will also actively expand the international market, the high-quality products and services to the world, to provide global users with efficient, environmentally friendly, sustainable heat insulation material solutions.

 Nanjing Zhongrunda New Material Technology Co., Ltd. also pays attention to the close cooperation with its partners. The company has established a long-term and stable cooperative relationship with many well-known enterprises and institutions at home and abroad, and jointly research and develop and promote the application of efficient thermal insulation materials. Through close cooperation with partners, Nanjing Zhongrunda New Material Technology Co., Ltd. continuously improves the performance and application field of aluminum silicate fiber blanket, and promotes the development of new materials field.

 In addition, Nanjing Zhongrunda New Material Technology Co., Ltd. also pays attention to social responsibility and sustainable development. The company actively promotes the concept of environmental protection, and is committed to reducing the environmental pollution in the production process. At the same time, the company also actively participate in the social public welfare undertakings, to make a positive contribution to the society.

In short, the aluminum silicate fiber blanket of Nanjing Zhongrunda New Material Technology Co., Ltd. has been widely recognized by the market with its excellent performance, environmental protection and sustainability and the spirit of continuous innovation. We believe that in the future development, Nanjing Zhongrunda New Material Technology Co., Ltd. will continue to make greater contributions to the development of the new material field.

The technical parameters and application of aluminum silicate fiber blanket are as follows:

1. technical parameter

1. Weight: The weight of aluminum silicate fiber blanket is usually between 100-2000g / m². The greater the weight, the better the thermal insulation performance, but the price is also relatively high.

2. Thickness: The thickness of aluminum silicate fiber blanket is generally between 3-50mm, and there are also special specifications for customized production. The greater the thickness, the better the thermal insulation performance.

3. Temperature resistance: The temperature resistance of aluminum silicate fiber blanket is generally between 800-1600. For different applications, manufacturers will also provide customized solutions according to customer needs.

4. Melting point: The melting point of aluminum silicate fiber blanket is generally between 1700-1800, which is a very stable insulating material.

2. apply

1. Strong stability, good heat insulation performance, sound absorption and noise reduction, light weight, high tensile strength, the lowest thermal melt, low thermal conductivity.

2. It has high temperature resistance and a maximum use temperature up to 1300. Under the same conditions, the thermal conductivity of aluminum silicate products is more than 30% lower than other insulation materials.

3. It has good chemical stability and is not subjected to moistening to the molten metal.

4. Good sound insulation effect and electrical insulation, which can be used as high-frequency insulation materials.

5. Due to its light weight and good stability, it is widely used in the insulation of industrial kilns, heating devices, high temperature pipes and high temperature containers, as well as in the insulation of air conditioning and cold storage.

The above information is for reference only, if you need to know more information, it is recommended to consult professionals.
