Foil-clad Rubber Foam
2023-08-19

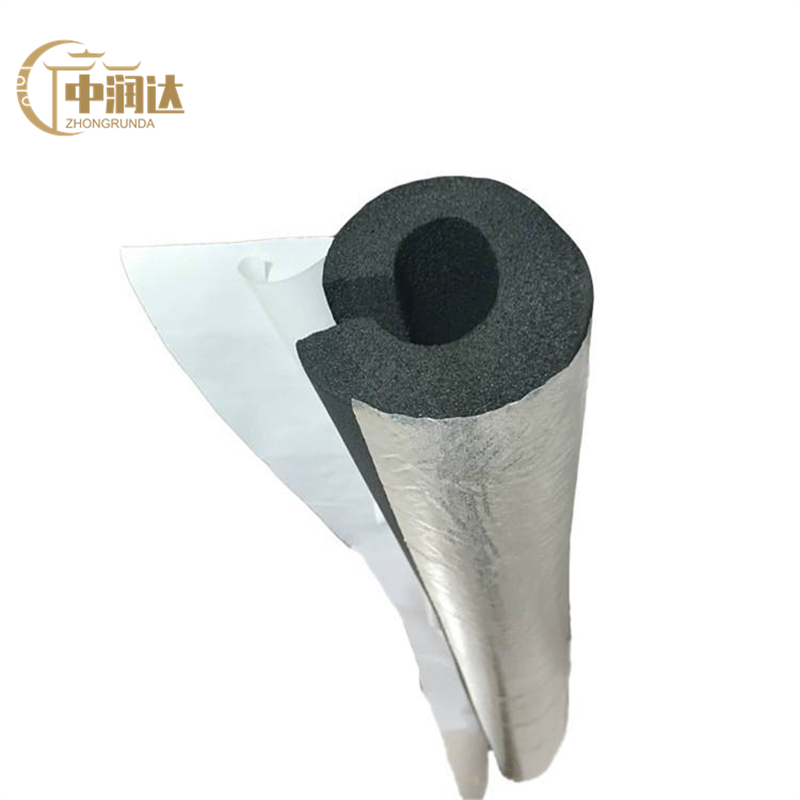

 Foil-clad Rubber Foam

ZRD Aluminum Foil-clad products

Foil-clad Rubber Foam is a multi-functional insulation material that combines the benefits of rubber and foil. The rubber foam provides excellent thermal insulation, while the foil layer acts as a radiant barrier, reflecting heat and preventing it from entering the insulation layer. This unique combination makes Foil-clad Rubber Foam ideal for use in a variety of applications, including HVAC ductwork, walls, attics, and floors.

ZRD CLASS B1 RUBBER PLASTIC insulation pipe is flexible with closed cell structure. The standard products are black. It has lower thermal conductivity, best moisture resistance factor and fire proof property.

ZRD CLASS B0 RUBBER PLASTIC insulation pipe is a high-quality rubber plastic heat-insulating and heat-preservation material. It not only has the same thermal conductivity with CLASS B1, but also has better heat insulation, energy saving property and best moisture resistance factor and longer service life. The standard products are charcoal-grey.

ZRD CLASS B0 RUBBER insulation sheet has best fireproof property because of many special materials has been added as its raw and processed materials. It accords with European standards and has been sold to Southeast Asia, Middle East, Australia, etc.

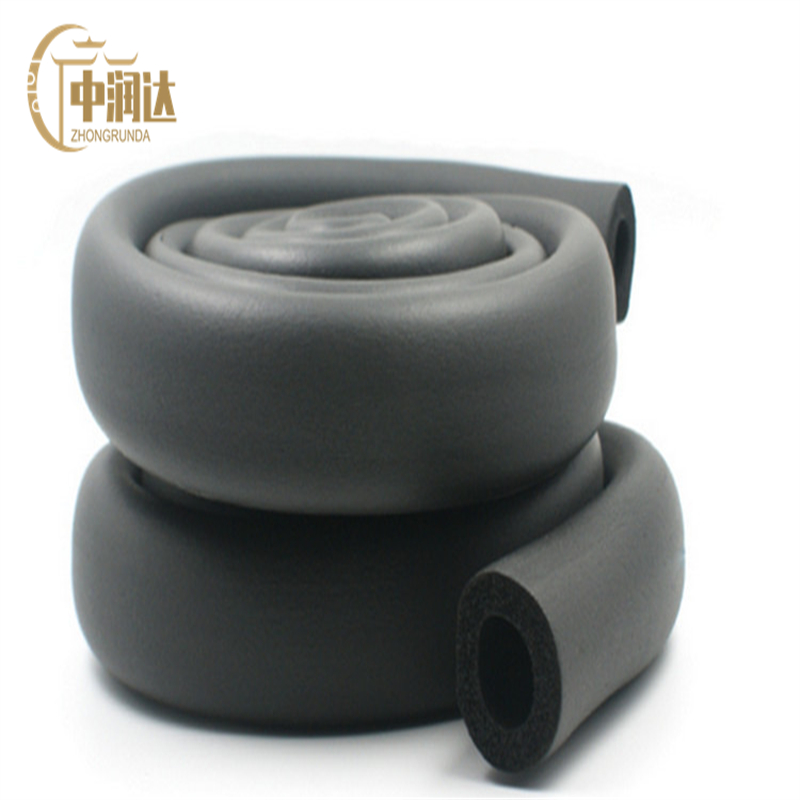

Foam Cover For AC Pipes

The Characteristics of Rubber Tube as Air Conditioner Foam Pipe Insulation

Flame retardant (not easy to burn, it will be extinguished when leaving the fire source) Closed-cell structure with ACMF foaming technology can effectively prevent heat conduction Thermal conductivity, no more than 0.034W/m·k at 0 °C.

The surface heat release coefficient is high, reaching 9W/m2k Excellent water vapor permeability resistance The moisture resistance μ ≥ 5,000 constitutes a“built-in” waterproof vapor layer, so that the insulation board as a whole is both an insulation layer and a moisture barrier layer.

Good fire performance, oxygen index above 32.

Easy and quick to install.

ZRD RUBBER FOAM INSULATION--CHINA RUBBER FOAM INSULATION SUPPLIER

Contains no fluorocarbon materials such as CFC, HFC or HCFC. Contains no formaldehyde, dust and fiber.

Rubber and plastic insulation pipe has excellent fire performance, and the operating temperature range is -50 ° C to 110 ° C

Materials:Class 0,Class B1, Class B2

Tube inner diameter (mm)

9mm thick

(1.8m/piece)

15mm thick

(2m/piece)

20mm thick

(2m/piece)

25mm thick

(2m/piece)

Size

(mm*mm)

Piece

Piece/box

Size

(mm*mm)

Piece

Size

(mm*mm)

Piece

Size

(mm*mm)

Piece

6

6*9

180

180













10

10*9

140

140

10*15

80

10*20

70





13

13*9

120

100

13*15

80

13*20

50





16

16*9

100

95

16*15

60

16*20

50





19

19*9

100

80

19*15

60

19*20

40





22

22*9

100

70

22*15

60

22*20

40

22*25

30

25

25*9

80

55

25*15

60

25*20

30

25*25

25

28

28*9

60

50

28*15

50

28*20

30

28*25

25

32

32*9

60

45













34







34*15

40

34*20

30

34*25

25

35

35*9

60

40















38*9

50

30













42

42*9

50

30













43

43*9

50

30

43*15

30

43*20

25

43*25

20

48

48*9

50

28

48*15

30

48*20

25

48*25

20

54

54*9

50

25













60

60*9

50

20

60*15

30

60*20

20

60*25

15

76







76*15

25

76*20

15

76*25

15

89











89*20

15

89*25

15

108











108*20

15

108*25

10



Nbr pvc rubber foam pipe Flexible hose for pipe insulation



Function:



1.Good heat / high temperature resistance

2.Good UV / ozone resistance

3.Good compression set

4.Good tensile strength

5.Resist mold

6. Resistant to acids and alkalis

It can be widely used for air conditioning, thermal / cold pipe insulation, etc.

 Hot Tags: foam cover for ac pipes, China, manufacturers, suppliers, factory, customized, low price, made in China

It is also easy to install, as it can be cut to size and fit snugly into tight spaces. Foil-clad Rubber Foam is also fire-resistant, and does not emit any harmful fumes, making it safe for use in residential and commercial settings. Overall, Foil-clad Rubber Foam is a cost-effective and energy-efficient solution for insulation and radiant barrier applications.


According to the customers' requirement, Huamei company can produce Aluminum Foil-clad products, enhancing the crack-resistance, shock-resistance, anti-corrosion performance of product greatly. We are leading Foil-clad Rubber Foam manufacturer in China with a professional team, which dedicates to the high quality Foil-clad Rubber Foam. Please contact us for product catalog and quotation!


Advantages

Our company has development this foil-clad products recently according to the requirements of the market.It has the following special advantages:

1. As a specifid aluminium layer is added to the appearance of this foil-clad product. So the fie-proof performance can be enhanced in a larger degree.

2. Its inner structure adds high molecule materials that is made by special techniques. The crack-resistance, shockresistance, anti-corrosion performance will be enhanced greatly.

3. Can be customized according to user needs other veneer.

4. Energy efficiency: Foil-clad rubber foam helps reduce energy consumption by reducing heat transfer and improving the insulation performance of buildings.
5. Cost-effectiveness: Foil-clad rubber foam is a cost-effective insulation material, providing good insulation performance at a lower cost compared to other insulation materials.
6. Easy installation: Foil-clad rubber foam is flexible and lightweight, making it easy to handle and install in tight spaces.
7. Long-lasting: Rubber foam is known for its durability, making foil-clad rubber foam a long-lasting insulation material that requires minimal maintenance.
8. Moisture resistance: The foil layer provides a barrier against moisture, making foil-clad rubber foam effective in preventing mold growth and reducing the risk of condensation.
9. Environmentally friendly: Foil-clad rubber foam is made from recycled materials and is free of ozone-depleting chemicals, making it an environmentally friendly insulation option.
