ZRD NBR PVC Rubber Foam Board
2023-08-18

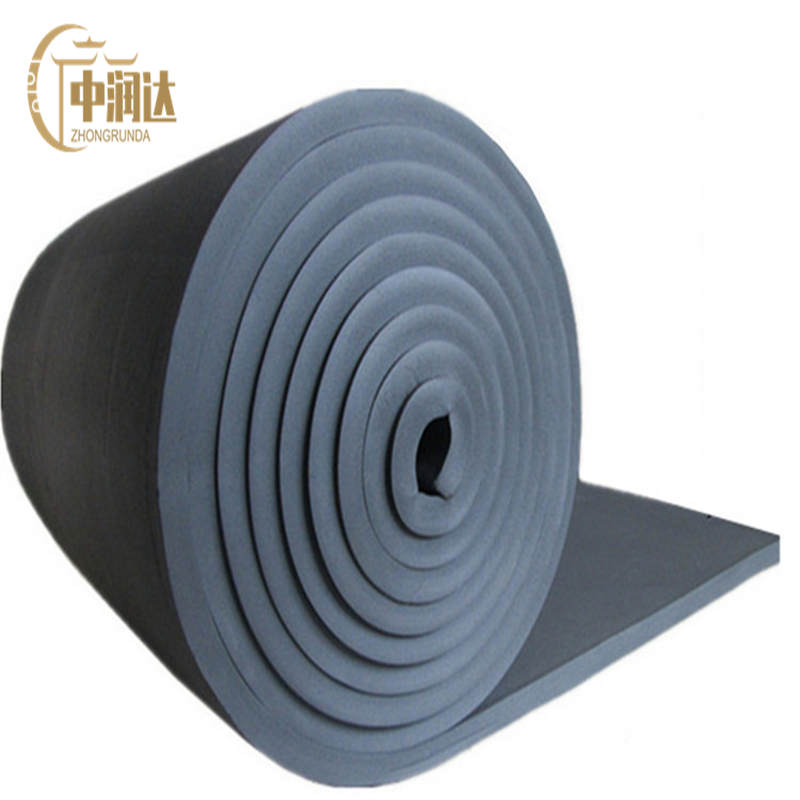

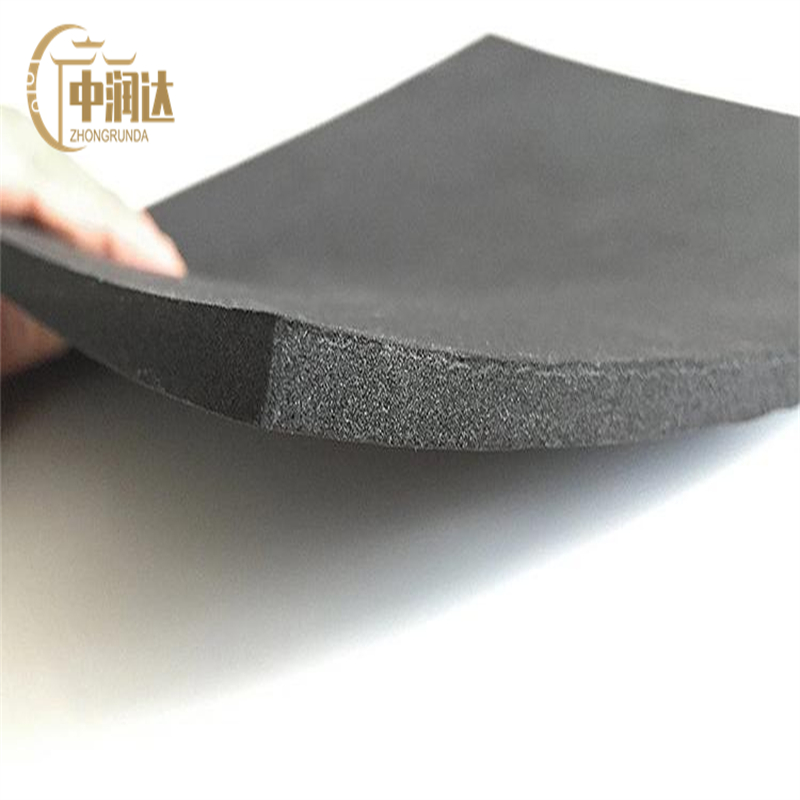

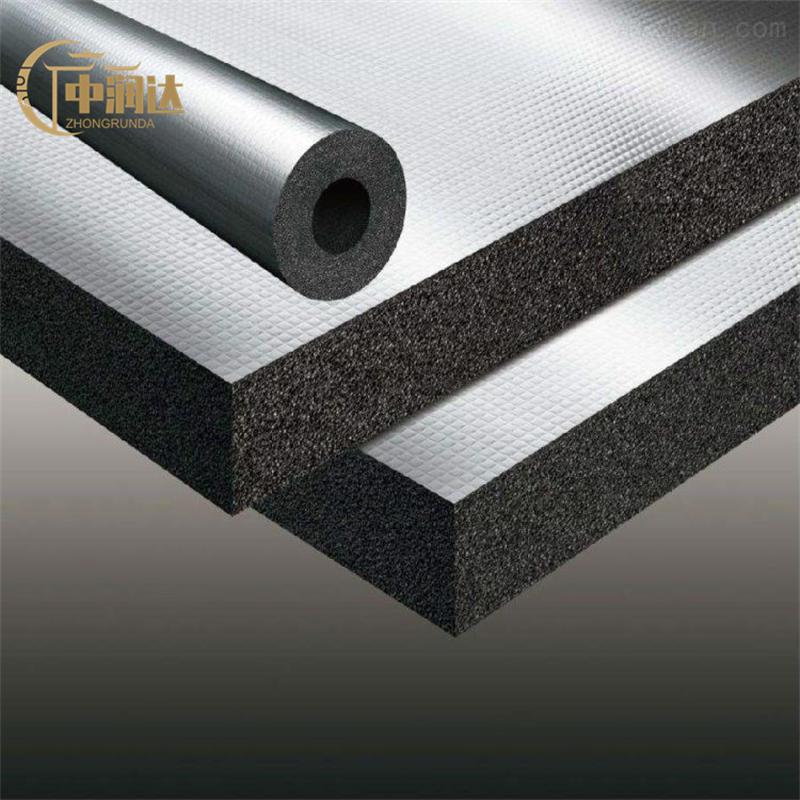

 ZRD NBR PVC Rubber Foam Board

Nitrile rubber foam insulation sheet :

CLASS 0 RUBBER FOAM insulation sheet is a high-quality rubber foam heat-insulating and heat-preservation material. It not only has the same thermal conductivity with CLASS 0, but also has better heat insulation, energy saving property and best moisture resistance factor and longer service life. The standard products are charcoal-grey.

Because of the softness of this product, the rubber and plastic board is easy to install. Pipe installation: It can be installed after being installed, or the pipe can be cut longitudinally and then bonded with aluminum foil tape. For complex parts such as valves, tees, elbows, etc., the plates can be cut and bonded according to different shapes to ensure the tightness of the whole system, thus maintaining the thermal insulation of the whole system. Because of the smooth and flat rubber surface and the excellent performance of the material, it does not need to add a vapor barrier layer and a protective layer to reduce the trouble in construction, and the appearance is beautiful and smooth.

Specification of foam rubber insulation sheets:



Thickness

10mm

15mm

20mm

25mm

30mm

m/piece

20m

20m

10m

10m

10m

Tolerance

+1.5

+1.5

+3.5

+4

+5



Main application

1.Insulation of workshop and building

2.Protection of sports equipment, in cushions and diving suits

3.Every kind of cold/hot medium containers

Overview

Place of Origin:China

Model Number:NBR PVC rubber foam

Processing Service:Cutting, Moulding

Color:Blackcustomized

Thickness:6-40mmcustomized

Sample:Free sample applicable

NBR (nitrile rubber) and PVC (polyvinyl chloride) are the main composite materials in the plastic rubber foam industry. In addition to the crosslinking properties, the NBR / PVC mixture has both ozone-resistant PVC properties and NBR oil properties, as well as a degree of fire resistance. It also has good physical properties. Because PVC is a rich source of raw materials and low cost, this blended foam is widely used in many areas.

NBR PVC rubber foam main uses:

NBR is mainly used to manufacture oil resistant products, such as oil resistant tubing, adhesive tape, rubber diaphragm, large oil bag, etc. It is often used to make all kinds of oil resistant molded products, such as O-ring, oil seal, cup, diaphragm, valve, bellows, etc. it is also used to make rubber sheet and wear-resistant parts. The foam performance is intact at -30 C -100 C.



Hot Tags: NBR PVC rubber foam, China, suppliers, manufacturers, factory, wholesale, buy, price, made in China, Glass Wool Rolls for Oven, Mineral Wool Insulation Roll, Aerogel Sheet, Silica Aerogel Thermal Insulation Board, Silicone Rubber Coated Fiberglass Fabric, Ceramic Fiber Blanket



NBR foam sponge properties:



1.It looks like a sponge, very elastic, soft to the touch and does not hurt your hands.



2.The surface of the smooth tube is smooth, full of plastic gloss and can be processed in any length; the surface of the smooth pipe is naturally matt, of high quality and has a good anti-slip effect.



3.Microporous material, closed cell structure, no water absorption.

4.It has good flame retardancy and resistance to weathering and is non-toxic.

5.surface crust, closed cell structure, low water absorption, low thermal conductivity, good thermal insulation effect; strong flexibility, high flexibility, shock absorption, single suction effect;

6. Excellent weather resistance, cold resistance, heat resistance, drying resistance, durability and good flame retardant effect.

The main purpose of NBR foam sponge sheet:

Nitrile rubber is mainly used to make oil-resistant products such as oil-resistant tubes, tapes, rubber membranes and large oil bladders. It is often used in the manufacture of various oil-resistant molded products, such as O-rings, oil seals, cups, diaphragms, valves, bellows, etc., as well as wear-resistant rubber plates and components. The foam performance is intact at a temperature of -30 to 100 ° C.
