ZRD INDUSTRY ROCK WOOL WIRE MESH BLENKET

It is a rolled felt rock wool product made of galvanized iron wire or stainless steel wire to sew rock wool felt and galvanized iron wire mesh or stainless steel wire mesh. It has good elasticity, heat preservation, and is convenient for construction. Hydrophobic and low-chlorine products can be produced according to requirements, and rock wool aluminum foil felt can also be used for sewing.

Standard Specification

PRODUCT	IRW80		IRW100		IRW120
Density，kg/m3	80		100		120
Width，mm	600,900		600,900		600,900
Thickness，mm	25~50	60~ 100	25~50	60~ 100	25~50	60~ 100
Length，mm	5000	3000	5000	3000	5000	3000

For products with other specifications, please consult the company sales.

Main Performance and Technical Indicators

Performance		IRW80	IRW100	IRW120	Uint	Standard
Thermal conductivity	5 0 C	≤ 0.038	≤ 0.038	≤ 0.038	W/(m•K)	GB/T 10295 ASTM C518 ASTM C177
	1 0 0 C	≤ 0.047	≤ 0.045	≤ 0.045
	1 5 0 C	≤ 0.058	≤ 0.056	≤ 0.055
	2 0 0 C	≤ 0.071	≤ 0.067	≤ 0.064
	2 5 0 C	≤ 0.085	≤ 0.080	≤ 0.074
	3 0 0 C	≤ 0.099	≤ 0.095	≤ 0.090
Maximum operating temperature		650	750	750	C	ASTM C411
Heat load shrinkage temperature		600	650	650	C	GB/T 11835
Linear shrinkage		≤2	≤2	≤2	%	ASTM C356
Volume moisture absorption*		≤ 0.02	0.02	0.02	vol%	ASTM C1104 M
Hydrophobicity*		99	99	99	%	GB/T 10299
Chloride content**		≤ 10	≤ 10	≤ 10	mg/ kg	ASTM C871
Combustion performance		Nonflammability A1 Smoke degree <25 Flame Spread <25			---	GB 8624 ASTM E84

Performance	IRW80	IRW100	IRW120	Uint	Standard
Organic content	≤ 1.5	≤ 1.5	≤ 1.5	%	GB11835
Environmental friendly	Asbestos-free and free of CFSs, HCFCs and HFCs			--	---
Corrosive	no corrosion			--	ASTM C665

* Hydrophobic grades only, ** Low chlorine grades for austenitic stainless steels only, per ASTM C795;

Other properties meet the requirements of GB/T 11835-2007 or ASTM C592.

Application

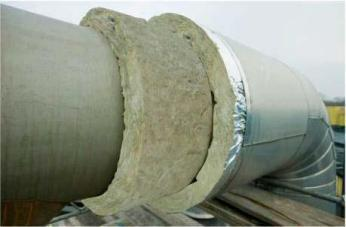

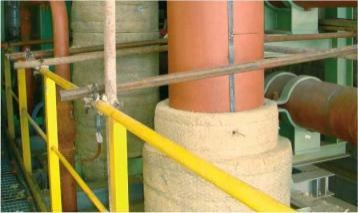

IRW series are mainly used for heat preservation and heat insulation protection of large-diameter process pipes, boilers, storage tanks, large-scale equipment and special-shaped parts, valves and pipe joints in nuclear power plants, thermal power plants, oil refineries, chemical plants, etc., especially suitable for heat preservation of high-temperature equipment.

Shaped Parts, Pipe Insulation
